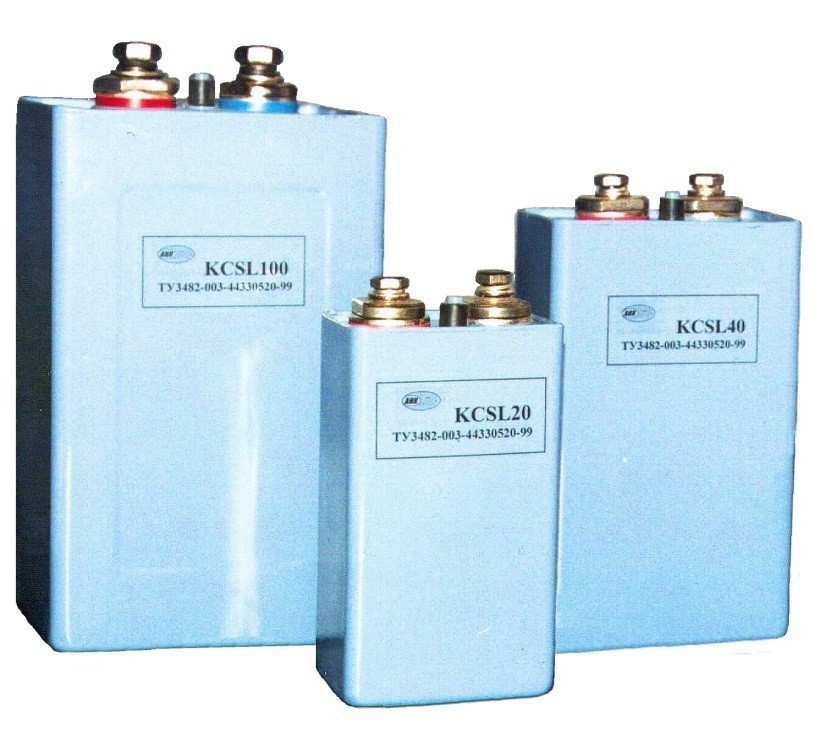

The batteries of the KCSL and KCSM series with sintered electrode plates developed by ANK are designed to operate in cycling mode and in constant charge mode.
"Research and Technology Centre “ANK" was the first among domestic manufacturers to start producing prismatic cells in metal seamless housings made by deep drawing. Cells are operable in the temperature range from minus 40 to plus 45 ° С, do not require topping up and electrolyte adjustment, during operation they do not emit aggressive and toxic substances into the environment.
|Cell type||Specifications||Capacity, А∙h||Discharge current, А (nom./max.)||Dimensions,mm, no more than||Weight,kg,no more than||Resource,amount of cycles|
|KCSL15||ТУ3482-006-44330520-05||15||1,5 / 15||65 х 106 х 36||0,55||800|
|KCSL20||ТУ3482-003-44330520-99||20||2/20||126 х 66 х 45||0,90||1000|
|KCSL25||ТУ3482-006-44330520-05||25||2,5/25||112 х 106 х 36||0,95||800|
|KCSL40||ТУ3482-003-44330520-99||40||4/40||156 х 86 х 52||1,65||1000|
|KCSL100||ТУ3482-003-44330520-99||100||10/100||186 х 106 х 90||4,20||1000|
|KCSL150||ТУ3482-005-44330520-05||150||15/150||186 х 106 х 150||6,30||1000|
|KCSL200||ТУ3482-005-44330520-05||200||20/200||186 х 106 х 170||7,50||1000|

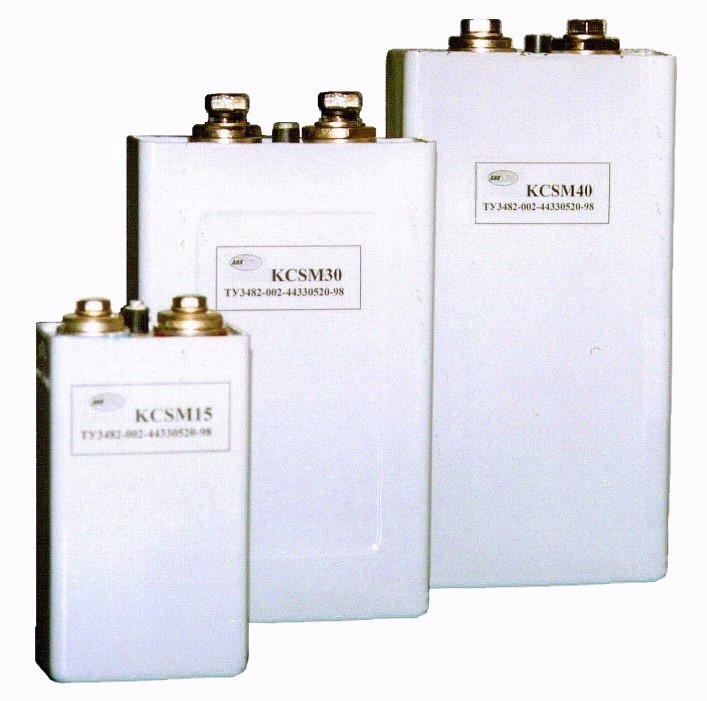

|Cell type||Specifications||Capacity, А∙h||Discharge current, А (nom./мax.)||Dimensions,mm,no more than||Weight,kg,no more than||Resource,amount of cycles|
|KCSM14||ТУ3482-008-11147746-96||14||3 / 30||65 х 106 х 36||0,65||800|
|KCSM15||ТУ3482-002-44330520-98||15||3 / 60||126 х 66 х 45||0,86||1000|
|KCSM30||ТУ3482-002-44330520-98||30||6 / 120||112 х 106 х 36||1,70||800|
|KCSM40||ТУ3482-002-44330520-98||40||8 / 160||156 х 86 х 52||1,65||1000|
|KCSM60||ТУ3482-001-44330520-98||60||12 / 360||186 х 106 х 90||4,20||1000|
|KCSM80||ТУ3482-001-44330520-98||80||16 / 480||186 х 106 х 150||6,30||1000|
Maintenance-free starter type batteries

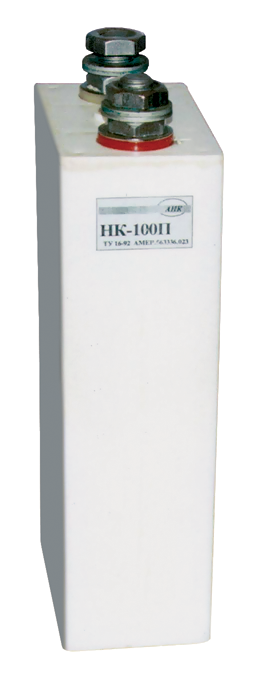

The NK ‑ 100P and KCSM100P batteries are designed for use on electric vehicles and for starter batteries completing .
The maximum discharge current in the continuous discharge mode is 600 A, in the short-term (pulsed) mode it is up to 1000 A. The batteries are assembled from sintered cermet electrodes in high-impact polystyrene bodies, equipped with safety valves to prevent the destruction of the battery during its improper operation.
Ni ‑ Cd rechargeable batteries based on cermet electrodes can also work effectively in traction modes on electric vehicles of both ground and underwater applications. Traction batteries for electric vehicles based on Pingvin, Volkswagen, and the Marina underwater towing vehicle were created based on the batteries of the NK ‑ 100P series.
|Сell type||Specifications||Capacity А∙h||Discharge current, А (nom/мax)||Dimensions, mm×mm×mm, no more than||Weight,kg,no more than||Resource(amount of cycles)|

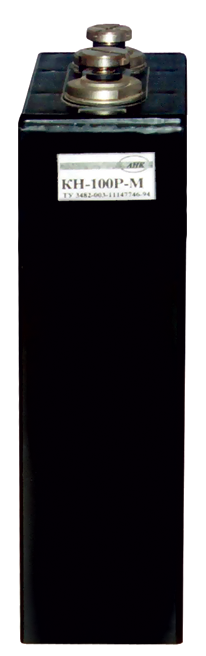

|НК 100П (КН 100Р М)||ТУ3482-003-11147746-94||100||10 / 600||255×123×66||4,3||800|
|KCSM100P||ТУ3482-001-44330520-98||100||10 / 600||255×126×71||4,55||1000|

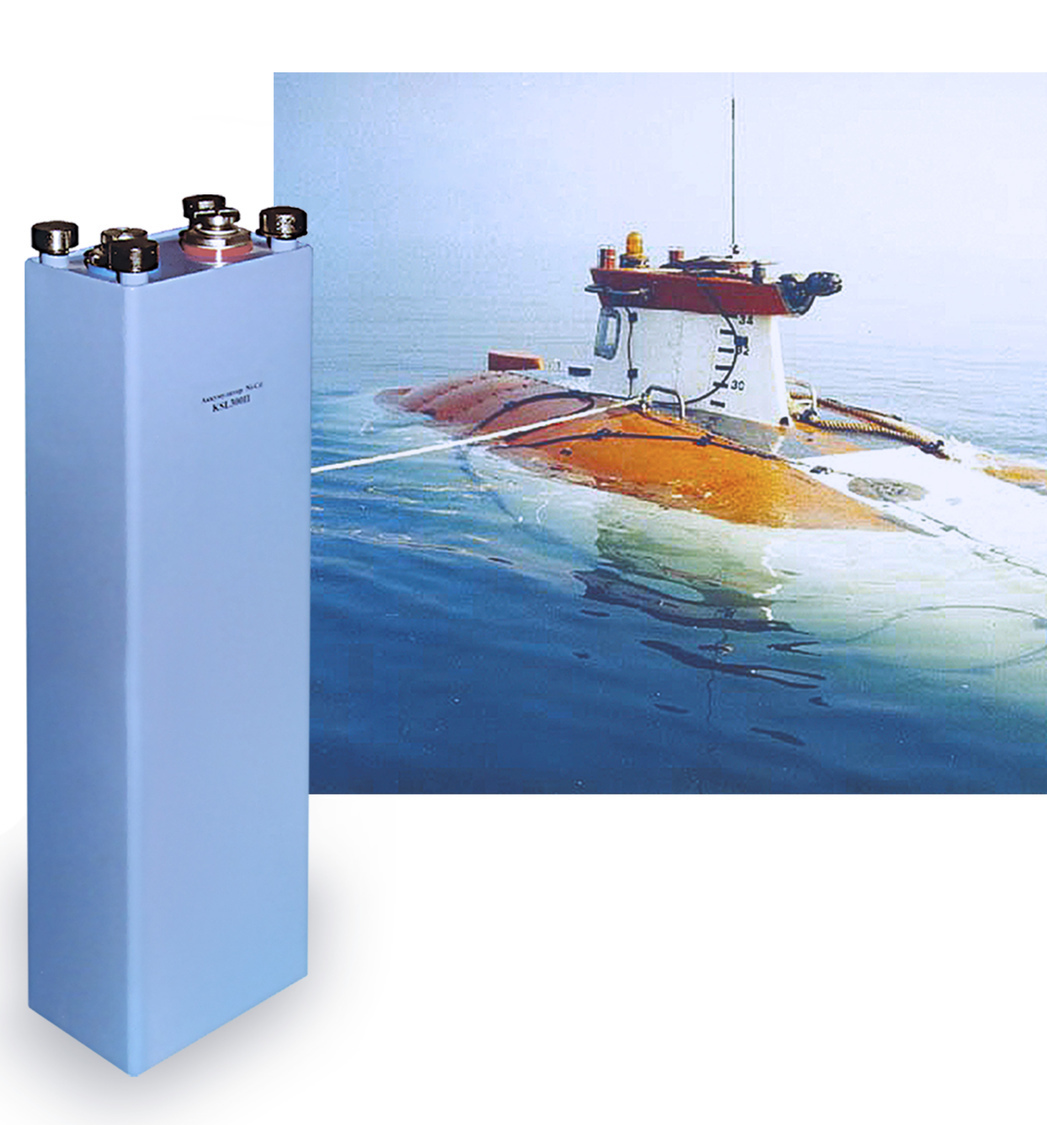

The KSL300P battery (TU3482‑007‑44330520‑02) is designed to equip submersible batteries used as DC power sources on board a deep-sea vehicle.
The battery is manufactured in a climatic version according to GOST 15150‑69 for operation at temperature from minus 10 to plus 40 ° С. The battery case is made of 08KP steel and has a two-layer protective paint coating. Four plugs of a special design are installed on the battery cover, which prevent the accumulation of gas under the cover and the removal of electrolyte during battery charging.
A battery with installed working plugs, placed in a container of an unloaded design (with a pressure compensator of the membrane type) filled with dielectric fluid, retains its rated electrical characteristics at elevated pressure above the surface of the dielectric fluid up to 630 kg / cm².
The battery capacity when discharging current up to 60 A in the temperature range from minus 2 to plus 3 ° C is not less than 95% of the nominal capacity when charging under normal climatic conditions.
|Rated Capacity, А·h||300|
|Nominal Voltage, V||1,2|
|Rated discharge current, A||30|
|Maximum discharge current, A||150|
|Maximum charge current, A||100|
|Weight with electrolyte, kg, no more than||12,5|
